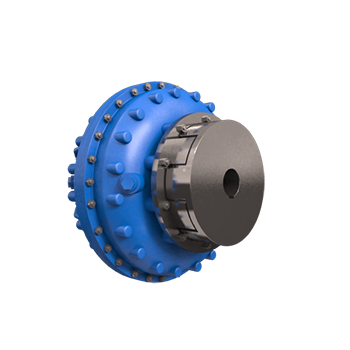

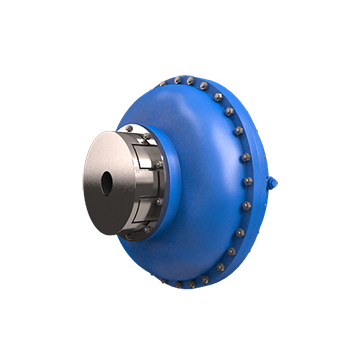

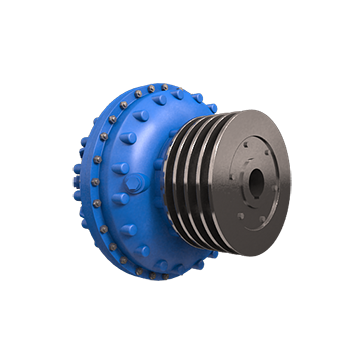

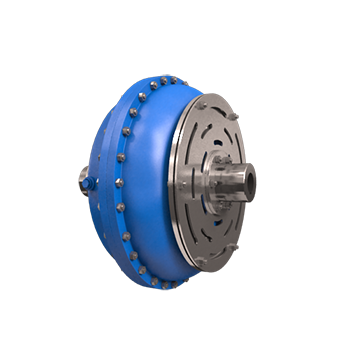

Constant Fill / Fixed Speed Coupling

• To satisfy starting and running characteristics of industrial machines Fluidomat offer three circuit types to give starting torque down to 120% of nominal torque.
• Type SM Stands for Shaft Mounted Coupling and HF stands for Radially Displaceable Coupling.
• Type SM and HF are basic coupling without delayfil chamber. Starting torque adjustable in the range of 180% to 275%.
• Type SMD and HFD are couplings with delayfil chamber. Starting torque adjustable in the range of 140% to 275%.
• Type SM-DX and HF-DX are couplings with extended delayfil chamber. Starting torque adjustable in the range of 120% to 270%.
• Normal operating slip - 2% to 5% depending on coupling size and starting torque value.
• Fusible plug blow off temperature 130°C as standard. Optional 160°C.
• Suitable for two consecutive starts from hot and three from cold.
