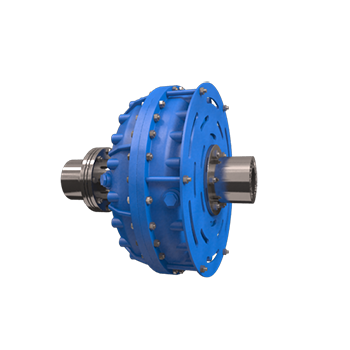

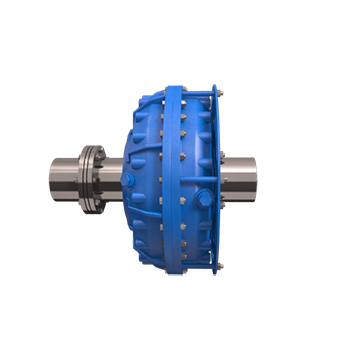

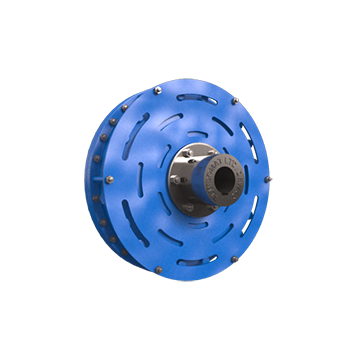

Type T (T-12) Fluid Coupling

Description

Constant-fill soft start for fixed-speed drives.

Fluidomat Type T-12 is a constant-fill, fixed-speed traction coupling — a radially displaceable design with a resilient driving plate on the input side and a metallic-disc flexible coupling on the output side. It gives a smooth, cushioned start while limiting the torque the driven machine ever sees.

Starting torque is adjustable in the range of 180–275%, with normal operating slip of just 2 to 5% depending on coupling size and the chosen starting-torque value. The unit is suitable for two consecutive starts from hot and three from cold, and a fusible plug protects against overload — blowing off at 130°C as standard, with a 160°C option.

Key data

180–275%

Adjustable starting torque

2–5%

Normal operating slip

130°C

Fusible plug (160°C option)

1000

KW max rating (T12-14)

Request a quote Download catalogue

Product specifications

Built for dependable, repeatable starts

The T-12 combines a resilient input drive with a metallic-disc flexible output coupling, accommodating radial displacement while protecting both motor and machine.

Radially displaceable construction — resilient driving plate on the input side, metallic-disc flexible coupling on the output side
Starting torque adjustable in the range of 180–275% to suit the driven load
Normal operating slip of only 2 to 5%, depending on coupling size and starting-torque value

Suitable for two consecutive starts from hot and three from cold
Fusible plug blow-off temperature of 130°C as standard; 160°C available as an option
Optional brake drum, mounted on the metallic-disc flexible coupling, for braking-duty applications

Selection data

Rating table — T-12

Maximum ratings in KW at different input speeds (RPM). For final selection, please consult Fluidomat application engineering.

Maximum rating (KW) by input speed — Type T-12
Coupling model	730 RPM	970 RPM	1470 RPM
T12-01	0.6	1.4	5.0
T12-02	0.9	2.1	7.5
T12-03	1.1	2.6	9.3
T12-04	1.8	4.3	15.0
T12-05A	3.3	7.5	27.0
T12-05	4.6	11.0	37.5
T12-06	7.3	17.4	60.0
T12-07	9.8	23.2	80.0
T12-08	19.0	45.0	153.0
T12-08B	28.3	65.0	228.0
T12-09	37.0	90.0	265.0
T12-10A	64.0	150.0	373.0
T12-10	90.0	209.0	485.0
T12-11	148.0	348.0	—
T12-12	260.0	610.0	—
T12-13	500.0	850.0*	—
T12-14	850.0	1000.0*	—

*Couplings for these ratings should be selected only after approval is obtained from Fluidomat. A brake-drum version (T-12 with brake drum) is available on the metallic-disc flexible coupling.

Selection data

Technical specification & dimensions

Full dimension, connected-flexible-coupling, brake-drum and mass-moment-of-inertia data, as published by Fluidomat.

T-12 with Brake Drum

Flexible Coupling Model	Metallic Disc Coupling
Flexible Coupling Model	ØE	C	Y	K* Min
FXC-I	160	75	21	26
FXC-I	200	75	21	26
FXC-II	200	75	19	26
FXC-II	250	95	10	35
FXC-III A	250	95	35	35
	300	118	32	55
	315	118	32	55
FXC-III	250	95	48	35
	300	118	30	55
	315	118	30	55
	400	150	18	73
FXC-IV A	300	118	52	55
	315	118	52	55
	400	150	40	65
	500	190	05	70
FXC-IV	400	150	40	65
	500	190	05	70
	600	236	(-)31	80
	630	236	(-)31	80
FXC-V	500	190	70	70
	600	236	34	70
	630	236	34	70
	710	265	25	90

Dimension Table T-12

Model T-12	A	B	ø d1 Maximum	Ø 1	ø d4 Maximum	Ø 4	Dry Weight KG.	Maximum Oil Filling In Litres	Connected Flexible Coupling Model
01	280	167	35	50	55	70	17	1.5	FXC-I
02	310	181	35	50	55	70	20	3	FXC-I
03	330	199	50	80	55	70	26	2.9	FXC-I
04	350	216	50	80	60	70	31	3.7	FXC-II
05A	395	237	50	80	60	70	48	5.1	FXC-II
05	420	276	75	110	75	95	67	5.9	FXC-III A
06	465	290	75	110	75	95	75	8.4	FXC-III A
07	510	314	75	110	80	95	85	11	FXC-III
08	570	347	110	140	90	110	138	15	FXC-III
08B	615	353	110	140	110	125	176	18.6	FXC-IV A
09	650	371	110	140	110	125	183	22.2	FXC-IV A
010A	700	368	110	140	110	125	198	26.3	FXC-IV A
010	750	414	110	140	115	125	234	33	FXC-IV
011	860	488	125	210	145	200	395	50	FXC-V
012	970	568	150	210	145	200	480	75	FXC-V
013	1104	594	150	210	195	200	598	108	FXC-VI
014	1230	655	175	210	195	200	995	160	FXC-VI

Mass Moment of Inertia "J" with Oil in kg·m² - T12

Model	Outer Wheel	Inner Wheel
T12-01	0.11	0.02
2	0.15	0.03
3	0.19	0.04
4	0.27	0.05
05A	0.57	0.12
5	0.78	0.25
6	1.32	0.34
7	1.72	0.47
8	2.44	0.65
08B	4.11	1.69
9	5.01	2.11
10A	8.57	2.82
10	10.18	3.43
11	20.95	8.37
12	35.74	14.25
13	61.35	24.1
14	93.13	37.24

Construction & diagrams

Diagrams & views

T12 Fluid Coupling Type & T12 with Brake Drum

Typical applications

Proven across rotating equipment

Belt conveyors Bucket elevators Crushers Ball & rod mills Centrifugal pumps Fans & blowers Compressors Mixers & agitators

Constant-Fill CouplingsFixed-speed soft-start range Variable Speed ScoopEnergy-saving speed control Catalogues & downloadsDimensions, weights & oil data

Need help selecting a T-12 coupling?

Send us your motor rating, speed and driven-machine details, and our engineers will recommend the right T-12 model — with or without a brake drum.
